When a high-temperature, low-velocity fluid passes through the nozzle of an Ejector, it is converted into a high-velocity, low pressure stream. This pressure differential facilitates the entrainment and suction of the surrounding flouid by the Ejector’s principle.
ApplicationsTransfer, Spray, Mixing, and Discharge of fluids.
FeaturesNo drive component, easy use and maintenance

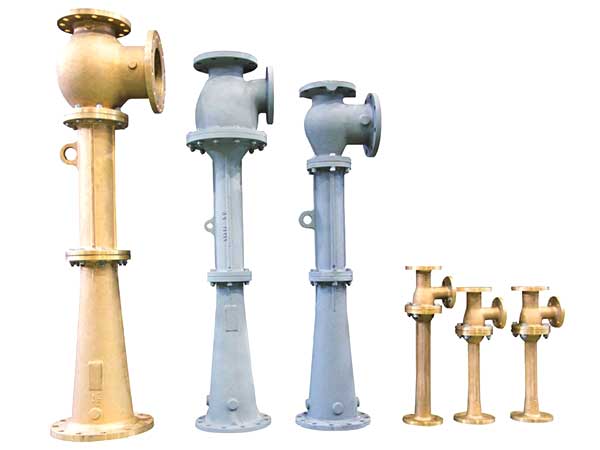

TypeHorizontal & Vertical Type
MaterialBC, FCD, SUS (Upon Requeset)
| NO | CONNECTION | TYPE | |||||
| DRIVING | SUCTION | DISCHARGE | |||||

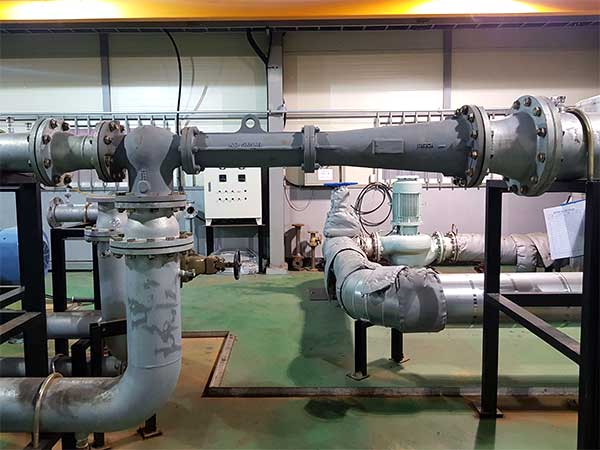

| 1 | 32A | (1 1/4”) | 40A | (1 1/2”) | 40A | (1 1/2”) | H |
| 2 | 40A | (1 1/2”) | 50A | (2”) | 65A | (2 1/2”) | H |
| 3 | 50A | (2”) | 50A | (2”) | 80A | (3”) | H |
| 4 | 50A | (2”) | 65A | (2 1/2”) | 80A | (3”) | H |
| 5 | 50A | (2”) | 65A | (2 1/2”) | 65A | (2 1/2”) | H |
| 6 | 65A | (2 1/2”) | 80A | (3”) | 100A | (4”) | H |
| 7 | 80A | (3”) | 100A | (4”) | 125A | (5”) | H |
| 8 | 100A | (4”) | 125A | (5”) | 150A | (6”) | H |
| 9 | 125A | (5") | 150A | (6”) | 200A | (8”) | H |
| 10 | 125A | (5”) | 125A | (5”) | 200A | (8”) | H |
| 11 | 150A | (6”) | 200A | (8”) | 250A | (10”) | H |
| 12 | 250A | (10”) | 250A | (10”) | 300A | (12”) | H |
| 13 | 250A | (10”) | 300A | (12”) | 350A | (14”) | H |
NO | CONNECTION | TYPE | |||||
DRIVING | SUCTION | DISCHARGE | |||||

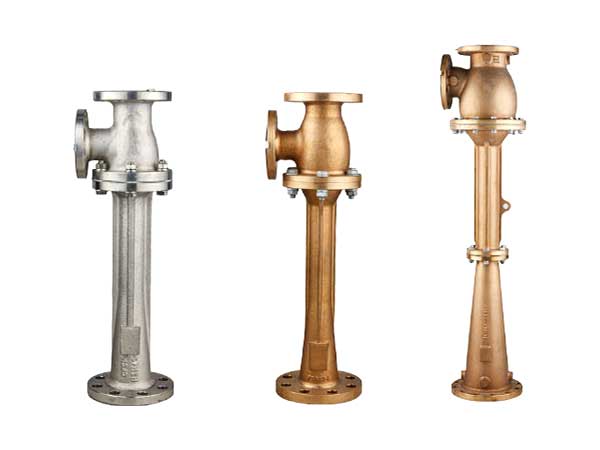

1 | 40A | (1 1/2”) | 50A | (2”) | 65A | (2 1/2”) | V |
2 | 50A | (2”) | 50A | (2”) | 80A | (3”) | V |
3 | 50A | (2”) | 65A | (2 1/2”) | 80A | (3”) | V |
4 | 65A | (2 1/2”) | 80A | (3”) | 100A | (4”) | V |
5 | 80A | (3”) | 100A | (4”) | 125A | (5”) | V |
6 | 100A | (4”) | 125A | (5”) | 150A | (6”) | V |
7 | 125A | (5”) | 125A | (5”) | 200A | (8”) | V |
8 | 125A | (5”) | 150A | (6”) | 200A | (8”) | V |
9 | 125A | (5") | 150A | (6”) | 150A | (6”) | V |
10 | 150A | (6”) | 200A | (8”) | 200A | (8”) | V |
11 | 150A | (6”) | 200A | (8”) | 250A | (10”) | V |
12 | 250A | (10”) | 300A | (12”) | 350A | (14”) | V |
